Specifications DeltaVision Elite

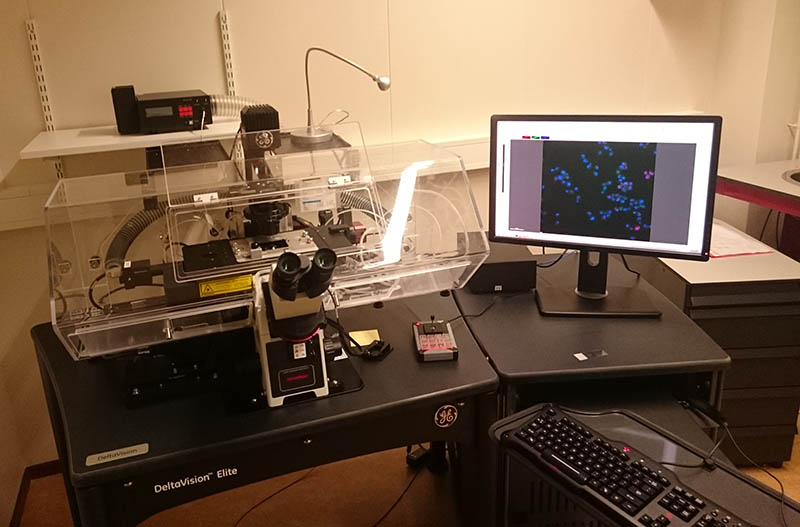

DeltaVision Elite
DeltaVision Elite

STAND:

  • Olympus IX-71 inverted
  • Environmental chamber, temp and CO2 control
  • Ultimate focus module
  • Automated Flexure stage
  • Live cell speed option: enables multi-color imaging without filter change.

OBJECTIVES:

  • PLAPON 60x oil, 1.42, WD 0.15 mm.
  • UPFLN 40X oil, 1.3, WD 0.2 mm
  • UPLSAPO 100X oil, 1.4, WD 0.12mm

FILTERS:

  • DAPI, CFP, FITC/GFP, YFP, TRITC, mCherry, CY5

CAMERA:

  • PCO-edge sCMOS camera; pixelsize 6.5 umX 6.5 um, 2560X2160 pixels, speed 400 fps at 512 x 512, 200 fps at 1025 x 1025

LIGHT SOURCES:

  • 7 colors DV light SSI (ultra fast solid state illumination, allowing 1ms exposure time)
  • LED transmitted light module
  • 4 laser Photokinetics module, 405, 488, 568 and 640 nm for FRAP

SOFTWARE:

  • softWoRx 6 acquisition and integrated deconvolution software (on Linux CentOS 6.3 platform)
