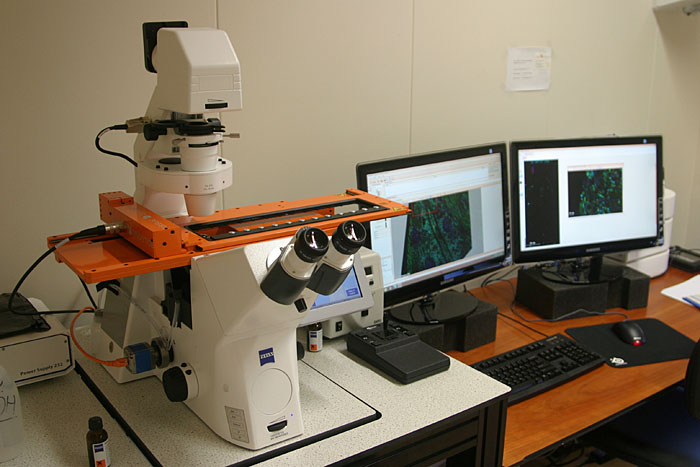

TissueGnostics TissueFAXS

This system combines detailed morphologic information of tissues and single cells offered by microscopy with the accuracy of multiparameter flowcytometry allowing quantitative expression measurements. Based on a high-end fully motorized Zeiss AxioObserver Z1 microscope

STAGE

◘ ultra precise automated Märzhäuser object table

◘ inserts for 12 separate slides or one multi (6 or 96) well plate

◘ pre-programmed for TMA analysis

◘ temperature, CO2 and O2 controlled live cell imaging insert  (PeCon)

AVAILABLE OBJECTIVES

◘ Zeiss-objectief EC "Plan-Neofluar" 2.5x/0.075 Dry

◘ Zeiss-objectief EC "Plan-Neofluar" 10x/0,3 Dry, Ph1

◘ Zeiss-objectief LD "Plan-Neofluar" 20x/0,4 Corr Dry, Ph2

◘ Zeiss-objectief EC "Plan-Neofluar" 40x/1,30 Oil, DIC

◘ Zeiss-objectief "Plan-Apochromat" 63x/1,40 Oil, DIC

LIGHT SOURCES

◘ Zeiss LED  Brightfield illumination

◘ EXFO Excite 120 PC fluorescence illumination.

FILTERS

◘ Zeiss-filter set 47 CFP shift free voor FRET

◘ Zeiss-filter set 46 YFP shift free voor FRET

◘ Zeiss-filter set 48 FRET CFP/YFP shift free voor FRET

◘ Zeiss Bleach Set 01 YFP voor FRET

Chroma ET Dapi-filter set  49000

Chroma ET FITC/GFP-filter set   49002

Chroma ET CY3-filter set   49004

Chroma ET Cy5-filter set   49006

Chroma FITC-   filter set   49011

Chroma TXred/mCherry-   filter set     49008

CAMERAS

◘ Monochrome camera system PCO Pixelfly II  1.4 Megapixels

◘ CMOS-color camera PL-B623 Pixelink 3.1 Megapixels

SOFTWARE

◘ TissueFaxs acquisition software

◘ TissueQuest fluorescence analysis software

◘ HistoQuest histology analysis software

Key features: fully automated slide scanning, multi-channel acquisition, generation of high-resolution overviews by Stitching, selectable ROI’s, powerful algorithms for image processing, automated identification of cells, analysis at the single cell level, FACS-style dot-plot operations, backward gating from dot-to-cell, storage of virtual slide data and analyzed results.

An extra workstation for the off-line analysis is available

See also the TissueGnostics website for more information on the system.
